RWR-212-P200 Series. Encapsulated railway DC-DC converter, RIA12, EN50155, 200W

RWR 212 Series

200W, Encapsulated railway quality DC-DC converter with built-in RIA 12 Limiter Circuit


Key Specifications:

  • Designed for railway and extreme environments;
  • Complies with EN50155 for electronic equipment on railway rolling stock;
  • Meets RIA12 input voltage withstand capacity (3.5Vn for 20msec);
  • Input: 24Vdc, 36Vdc, 48Vdc, 72Vdc, 96Vdc, or 110Vdc (EN50155 input ranges);
  • Output: 12V, 24V, 36V or 48Vdc;
  • Full encapsulation with thermally conductive MIL grade potting compound;
  • Line/load regulation: ±1% zero-load to full-load;
  • EMI: EN50121-3-2;
  • Cooling: conduction and natural convection;
  • -40°C to +70°C operating temperature range for full specification;
  • P200L (side flanges): 94 x 60 x 230 mm 3.7″ x 2.4″ x 9.1″ or

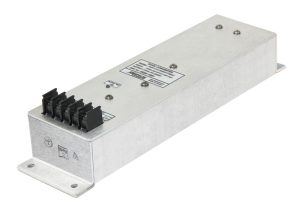

    P200X (flanges at each end): 70 x 57 x 253 mm 2.7″ x 2.2″ x 9.9″
RWY 212 Series

This fully encapsulated, railway DC-DC converter has a built in voltage limiter circuit to ensure input voltage surge withstand capability to meet RIA12 (3.5Vn for 20msec). It uses a field-proven design to generate 200W output power. This unit meets the requirements of EN50155 for electronic equipment used on rolling stock. The converter also meets requirements for RIA13 and RIA20. It is entirely potted with a thermally conductive MIL-grade silicon rubber compound to ensure immunity to high levels of shock, vibration and humidity. Cooling is by conduction via a base plate to customer heat-sink or chassis. Low component count, large design headroom, and the use of components with established reliability result in a high MTBF. The unit is also suitable for transportation, mining, oilrigs, military and other harsh environments. It is manufactured at our plant under strict quality control. Customized versions are also available.
